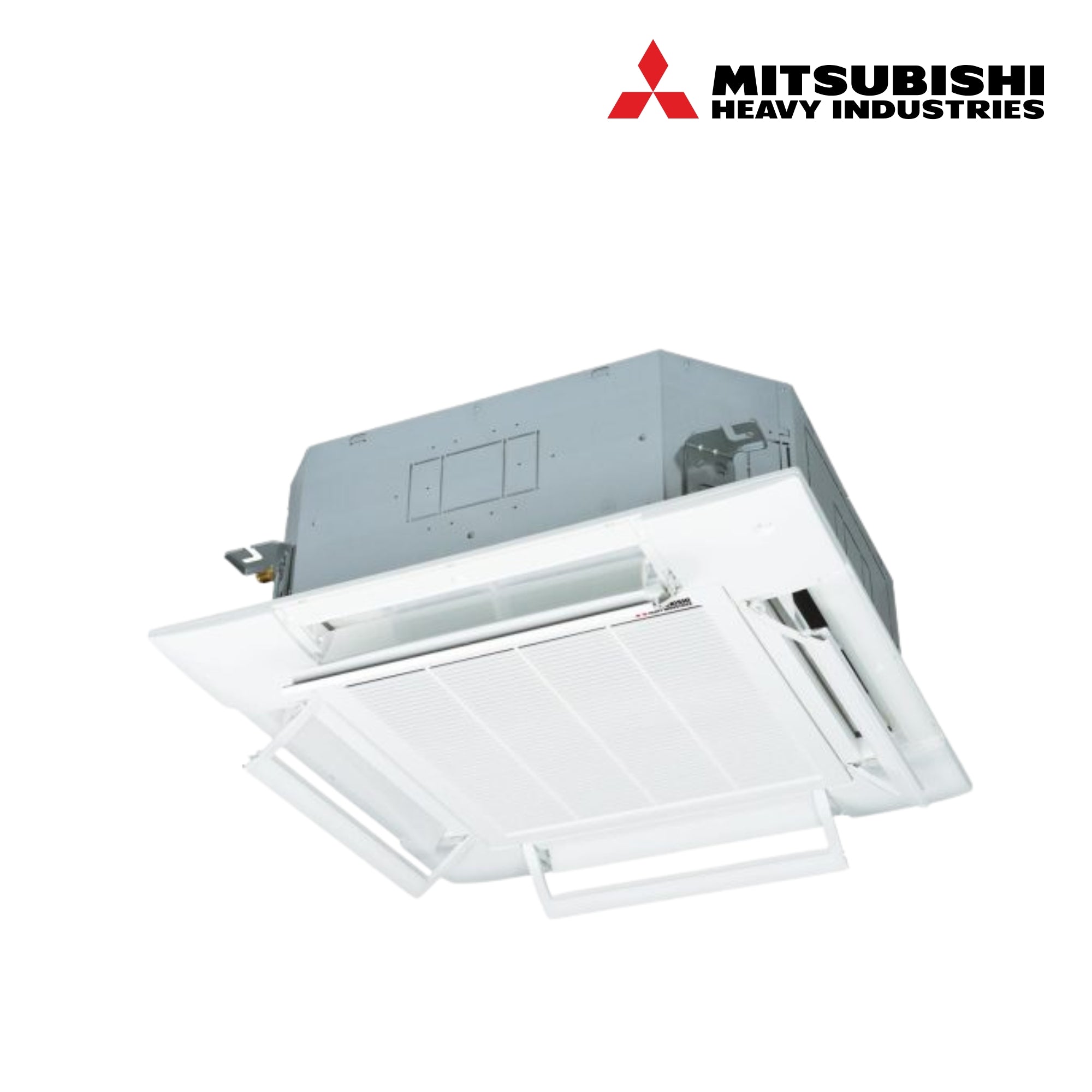

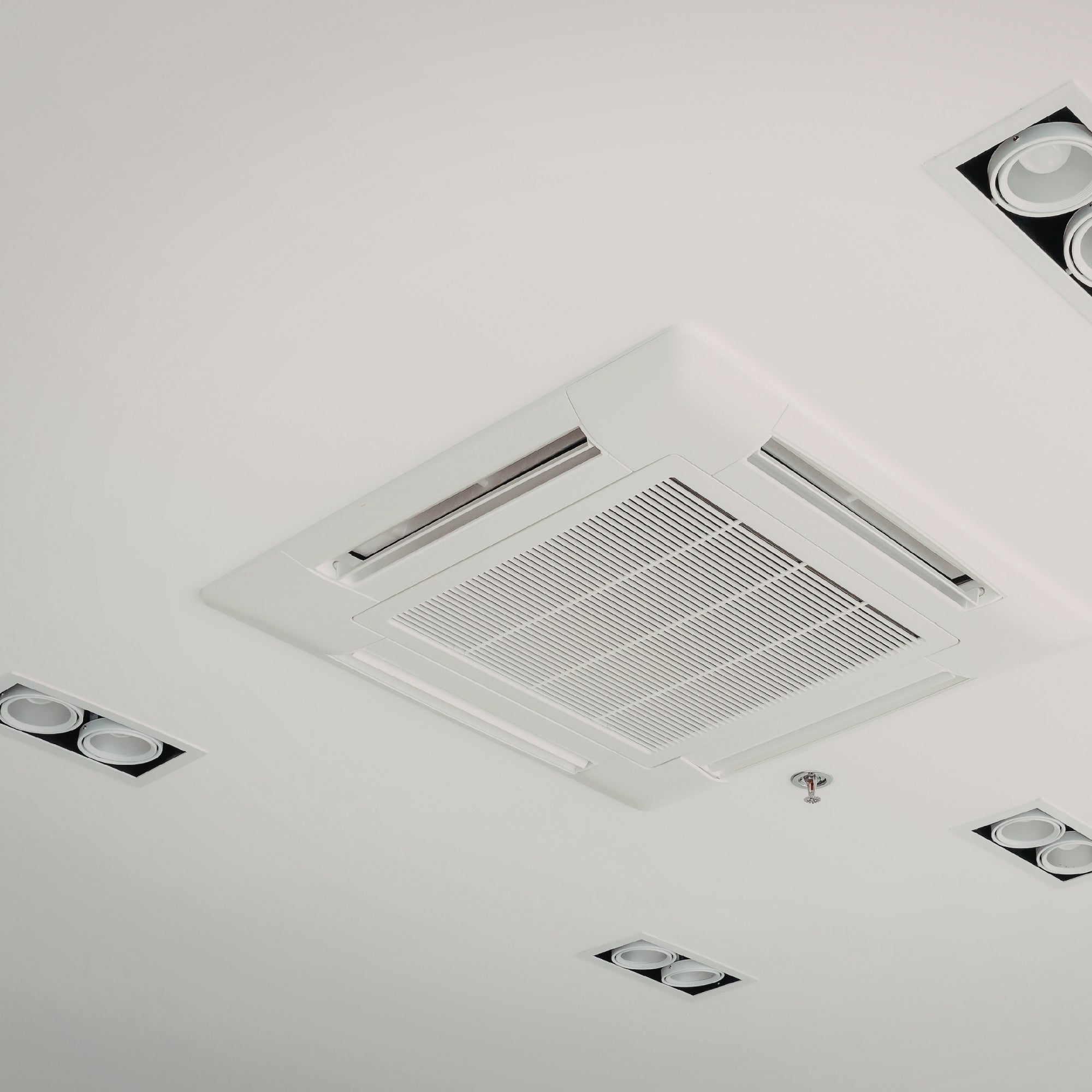

The Mitsubishi Heavy Industries Ceiling Cassette system offers powerful, discreet climate control for commercial and residential spaces. Recessed into a suspended ceiling, it gives even 4-way airflow and consistent temperatures throughout the room.
At a glance
Capacity | 5.0kW cooling, 5.4kW heating |
|---|---|
Heating and cooling | Yes, heat pump |
Energy rating | A++ cooling, A++ heating |
Airflow | 4-way, even distribution |
Installation | Recessed into a suspended ceiling |
Refrigerant | R32 (eco-friendly) |
Overview
Manufactured by Mitsubishi Heavy Industries, this cassette combines advanced technology, energy efficiency and quiet operation, making it a trusted choice across the UK for offices, retail spaces and modern homes.
Its flush-mounted design keeps interiors clean and uncluttered while delivering high-performance heating and cooling all year round. It keeps heating down to an outdoor temperature of -20°C.
Key features and benefits
4-way airflow | Even air coverage across the room. |
|---|---|
Ceiling-recessed design | Discreet, flush-mounted installation. |
Heating and cooling | Efficient heat pump technology. |
High energy efficiency | A++ rated for cooling and heating, to reduce running costs. |
Quiet operation | Suitable for work and living environments. |
Washable air filter | Helps improve indoor air quality. |
Built-in drain pump | Easy condensate removal. |

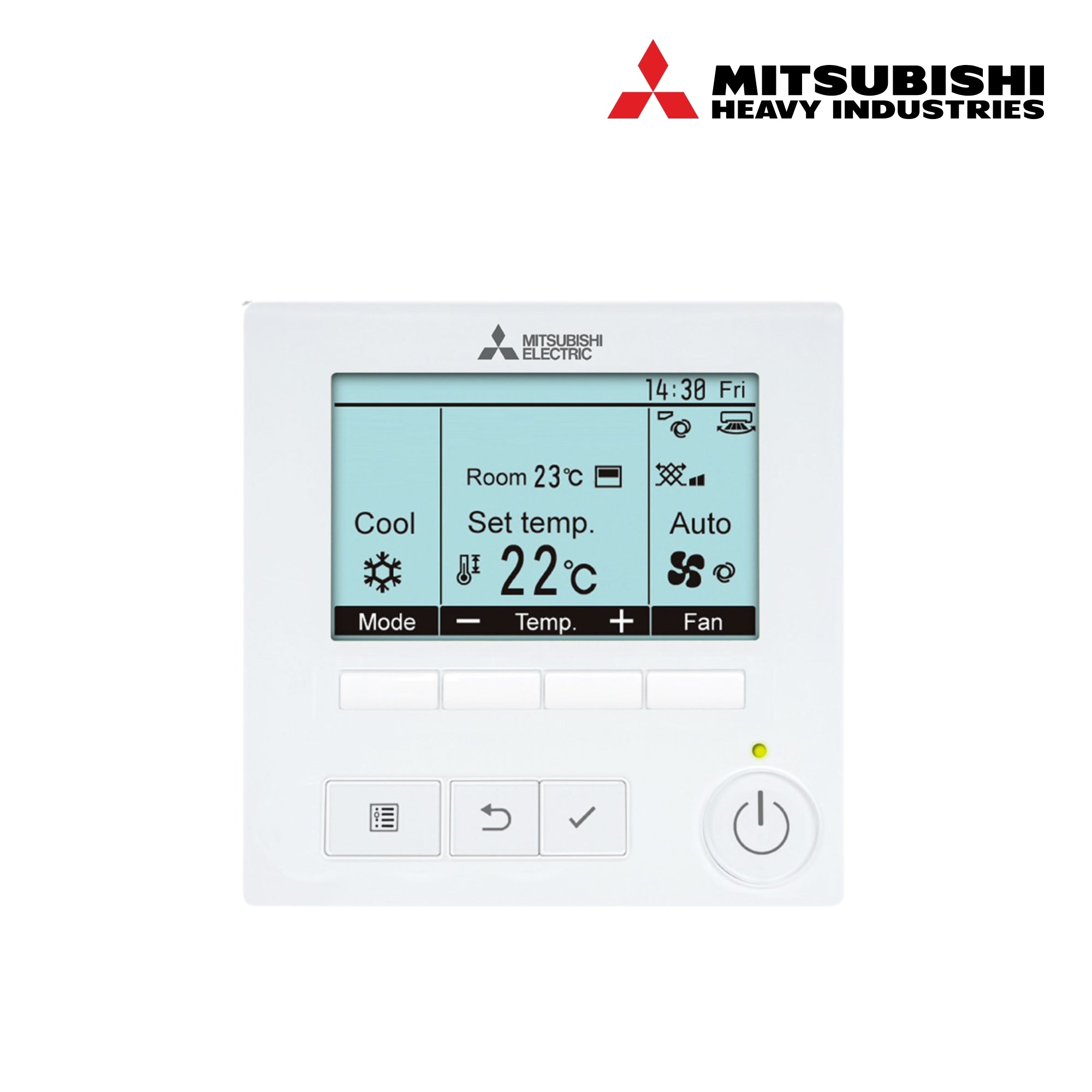

Flexible controls | Wireless remote, wired controllers and optional Wi-Fi. |
Reliable Mitsubishi performance | Built for durability. |
Technical specifications
Type | Ceiling cassette split air conditioner |
|---|---|

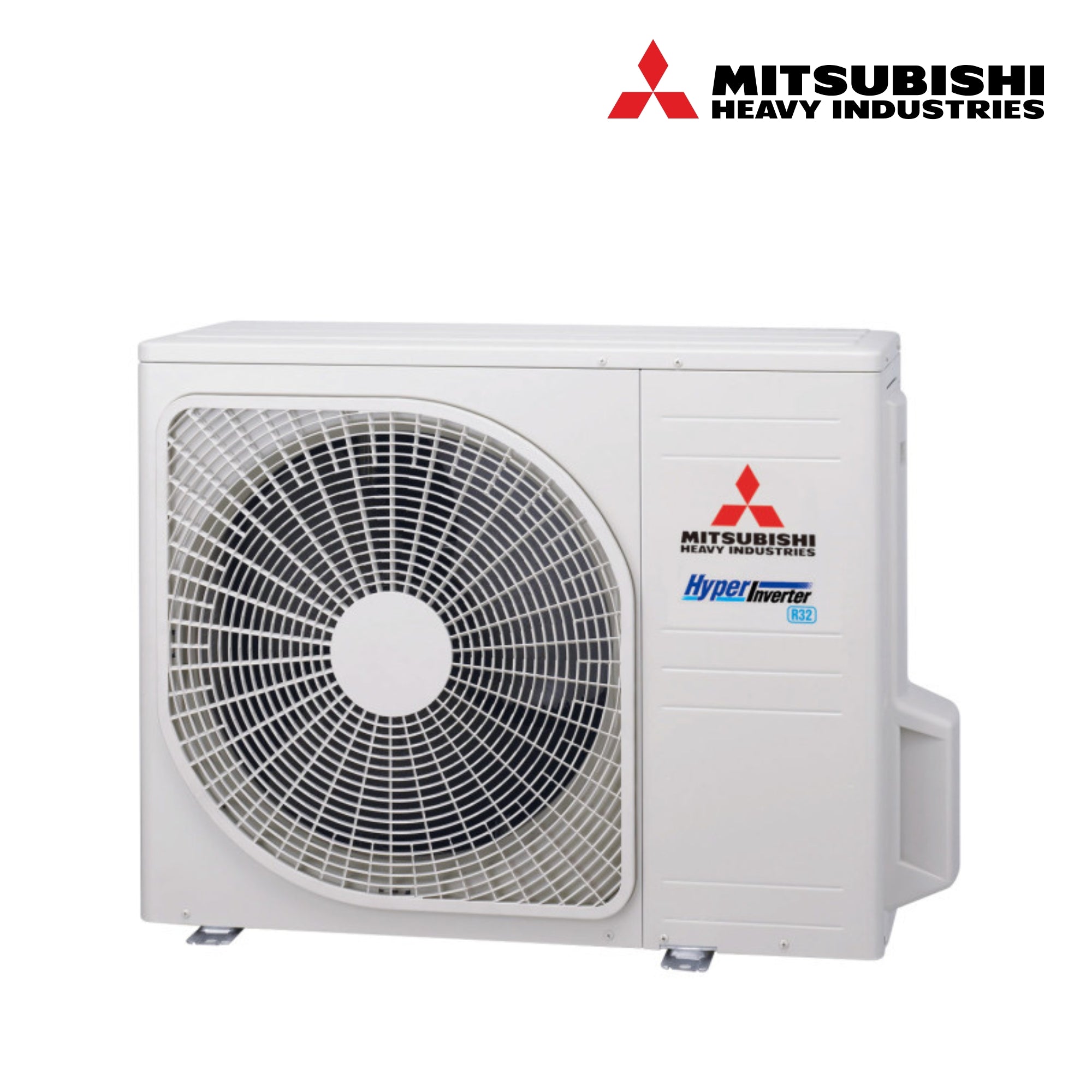

Models | Indoor FDT50VH, outdoor SRC50ZSX-W3 |
Cooling capacity | 5.0kW (range 1.1–5.6kW) |
Heating capacity | 5.4kW (range 0.6–6.3kW) |
Efficiency | SEER 7.93, SCOP 4.63 |
Energy rating | A++ cooling, A++ heating |
Airflow | 4-way directional |
Operating range | Cooling -15°C to 46°C; heating -20°C to 20°C (outdoor) |
Power supply | Single phase, 220–240V |
Refrigerant | R32 (eco-friendly) |
Controls | Wireless remote, wired controller, optional Wi-Fi |
Panel colours | White or black |
Unit sizes
| Cassette body | Ceiling panel | Outdoor unit |
|---|---|---|---|
Height | 236mm | 35mm | 640mm |
Width | 840mm | 950mm | 800mm (+71mm valves) |
Depth | 840mm | 950mm | 290mm |
Weight | 19kg | 5kg | 45kg |
Sound level | From 20dB(A) | – | 52dB(A) |
Ideal for
Offices and meeting rooms
Retail shops and showrooms
Restaurants and hospitality venues
Hotels and reception areas
Large residential spaces
What's included
Ceiling cassette indoor unit with panel
Outdoor unit
Remote control
Fixed-price supply and installation
Installed by F-Gas registered engineers
5-year workmanship warranty
0% finance is available on selected systems, provided by PayItMonthly and subject to status.
